Automobile Cooling System MCQs

Correct Answer: A. Air-cooling system

• Air-cooled engines use metal fins around the cylinder and cylinder head to increase the heat-transfer area.
• Air moving across these fins carries heat directly to the atmosphere.
• The system does not require liquid coolant, a radiator, water pump, hoses or a coolant reservoir.
• Fewer components reduce overall weight, manufacturing cost and maintenance requirements.
• Air cooling is widely used in motorcycles, scooters, portable engines and other small engines.
• Its limitation is less uniform temperature control than a water-cooled system, especially in large or high-output engines.

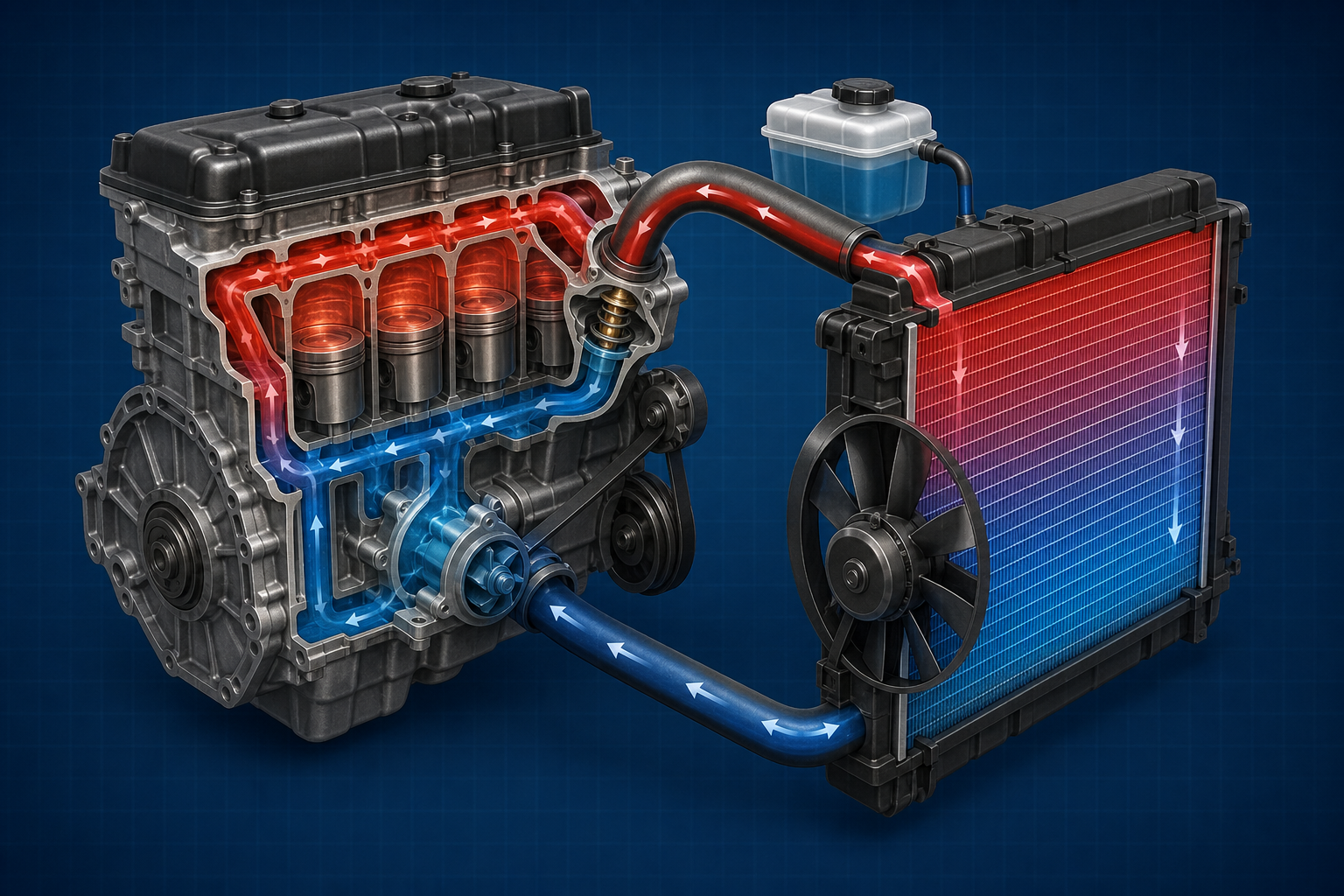

Correct Answer: B. Water-cooling system

• Coolant absorbs combustion heat while flowing through water jackets around the cylinders and cylinder head.
• The heated coolant travels through the upper hose to the radiator.
• Radiator tubes provide passages for coolant, while fins increase the area exposed to air.
• Vehicle motion and the cooling fan move air through the radiator core and remove heat.
• The cooled liquid returns through the lower hose to absorb more engine heat.
• An air-cooled engine transfers heat directly through cylinder fins and therefore does not use a conventional coolant radiator.

Correct Answer: A. No pump

• Thermosyphon circulation depends on density difference and natural convection rather than mechanical pumping.
• Coolant heated in the engine water jacket expands, becomes less dense and rises.
• The hot liquid moves through the upper hose into the radiator header tank.
• After losing heat in the radiator, the coolant becomes denser and sinks.
• Gravity returns the cooler liquid through the lower hose to the engine.
• The absence of a pump makes the system simple, but circulation is slower and less controllable than forced circulation.

Correct Answer: C. By gravity and natural convection

• Coolant heated by the engine expands, becomes less dense and rises.
• The hot coolant enters the radiator through the upper connection.
• As air passes through the radiator, the coolant loses heat and becomes denser.
• The cooler, heavier liquid descends through the radiator and lower hose.
• Gravity returns it to the lower part of the engine water jacket, completing the circuit.
• Because circulation is relatively slow, thermosyphon cooling is better suited to small, low-output engines than modern high-output engines.

Correct Answer: A. To regulate engine temperature

• The thermostat is a temperature-sensitive valve located near the engine coolant outlet.
• When the engine is cold, it remains closed or restricts radiator flow so the engine warms quickly.
• During warm-up, coolant may circulate through a bypass passage within the engine.
• At the specified operating temperature, the valve begins to open and sends coolant to the radiator.
• It varies the flow according to coolant temperature instead of acting as a simple on-off switch.
• Correct temperature control improves combustion efficiency, lubrication and engine life while preventing excessive overheating or overcooling.

Correct Answer: A. Centrifugal pump

• A centrifugal water pump contains an impeller rotating inside a casing.
• Coolant enters near the centre of the impeller and is thrown outward by centrifugal action.
• The casing guides the coolant into the engine water jackets under continuous flow.
• The pump is compact, simple and capable of moving a large quantity of coolant.
• It produces smoother flow than a reciprocating pump and has relatively low maintenance requirements.
• These characteristics make it suitable for the continuous circulation required by an automobile engine.

Correct Answer: A. Belt

• A pulley is fixed to the water-pump shaft in a conventional mechanical arrangement.
• A V-belt or serpentine belt transfers rotation from the crankshaft pulley to the pump pulley.
• The rotating shaft drives the impeller, which circulates coolant through the engine and radiator.
• The same belt may also drive accessories such as the alternator or cooling fan.
• Correct belt tension is important: a loose belt can reduce pump speed and cause overheating.
• Some modern vehicles use timing-belt-driven or electric water pumps, but the expected answer for this conventional exam question is belt.

Correct Answer: D. Engine water jacket and header hose

• The thermostat is normally installed in a housing at the engine coolant outlet near the cylinder head.
• This position places it between the hot engine water jacket and the upper or header hose.
• It senses the temperature of coolant leaving the engine.
• While closed, it restricts the route to the radiator and helps the engine warm rapidly.
• When it opens, hot coolant flows through the header hose to the top of the radiator.
• Locating it at the outlet enables effective control of the engine's operating temperature.
